In today's era of rapid industrial automation, drives serve as critical components ensuring the stable operation of numerous mechanical systems. Their performance directly impacts the efficiency and quality of production processes. Leveraging deep technical expertise and continuous innovation, V&T has meticulously developed the DTS800 series of multi-drive inverters. With distinctive technological advantages, a comprehensive product portfolio, and broad applicability, the DTS800 series delivers reliable and high-performance power solutions across a wide range of industrial sectors, significantly contributing to industry advancement.

The DTS800 series is V&T’s self-developed multi-drive inverter platform, featuring proprietary Direct Torque Control (DTC) technology. It offers fast torque response and superior speed regulation accuracy, supporting both encoder-based and encoderless DTC operation. Thanks to its unique DTC algorithm, the drive maintains high low-frequency torque and rapid torque response even without an encoder, satisfying the requirements of most industrial applications.

The V&T DTS800 drive family includes:

• DTS800-H series: Single/multi-drive inverter units
• DTS800-D series: Basic rectifier units
• DTS800-S series: Parallel slave inverter units
• DTS800-R series: IGBT rectifier/regenerative units
• DTS800-MCB: Parallel master control unit

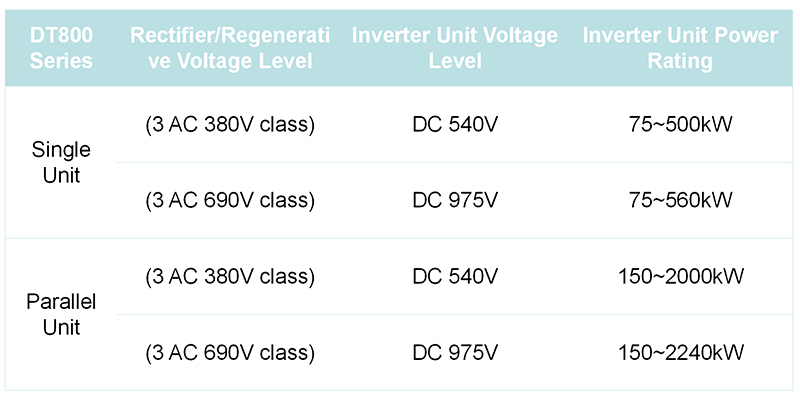

The DTS800 series supports both single-drive and multi-drive configurations. It also enables multiple inverter units to operate in parallel to drive a single motor, facilitating scalable power capacity through parallel operation. Available in two voltage classes—three-phase AC 380V and AC 690V—the series covers a wide power range from 75 kW to 2,240 kW.

Product Features:

Control Algorithm

• Employs advanced Direct Torque Control (DTC) technology, optimized for asynchronous motors.
• Enhanced motor control robustness.
• Reduced sensitivity to motor parameter variations.
• Fast torque response capability.
• Supports both scalar (V/f) control and Direct Torque Control (DTC).

Usability

• Standard equipped with an LCD operation panel.
• Menu-based parameter structure with a dedicated setup menu for initial commissioning.
• Parameter options designed for intuitive selection.
• Five default display screens, switchable at will; users can freely customize the information shown on the default display.
• Supports parameter upload and download.
• Enables PC-based commissioning and waveform capture via host software.
• Built-in web server allows browser-based debugging—no PC software installation required.
• Supports remote firmware upgrades.

Mechanical Design

• Book-style drive unit design for compact and modular installation.
• Full series powered by DC bus with integrated pre-charge (buffer) circuit.
• Recessed terminal layout for control wiring, enhancing protection and ease of access.

Communication

• Supports Modbus-RTU, CAN, PROFINET, and PROFIBUS-DP communication protocols.

Encoder & Pulse I/O

• Compatible with optical encoders.
• Supports 1 to 3 PT100 or KTY84 temperature sensors for motor or system thermal monitoring.

The V&T DTS800 series multi-drive inverters are widely applicable in demanding industrial sectors such as mining machinery, steel and metallurgy, drilling rigs, dynamometers, compressors, cranes, large fans, and other heavy-duty manufacturing drive applications.
