specialac motor controller mcu dc dc manufacturerfor industry equipment

specialac motor controller mcu dc dc manufacturerfor industry equipment

Specialac motor controller mcu dc dc manufacturerfor industry equipment

Delivery Time
With 20 days after deposit
Port of loading
Shenzhen,Shanghai
Sample provide
yes
Sample free
yes
Sample freight payer
buyer
Term of payment
T/T,L/C
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of specialac motor controller mcu dc dc manufacturerfor industry equipment
Company Advantages
1. The separation and purification process of V&T Technologies dc servo motor controller will be conducted for several times. It is separated from the complicated mineral aggregates and refined at least two times for high purity. The product has the advantages of deep weak magnetic control
2. The product can be well compatible with the dimmer, producing excellent or consistent quality light and emitting no irritating buzz. The product has high reliability and powerful overload capacity
3. Its quality is inspected and checked right from raw materials to the final production. With speed adjustability, it features better power optimization
4. The optimum quality and excellent performance makes the product the most sought-after product. Adopting international advanced torque vector control technology, it features excellent vector control algorithm and control performance
5. Strict quality policies and standards are carried out to ensure zero defect rates. It is adaptive for the synchronous and asynchronous motors
specialac motor controller mcu dc dc manufacturerfor industry equipment-1
specialac motor controller mcu dc dc manufacturerfor industry equipment-2

V6-H-4D5.5G & V6-H-4D5.5G  Four-in-one Auxiliary Controller (Oil pump + Air pump +DC/DC+PDU)


specialac motor controller mcu dc dc manufacturerfor industry equipment-3
specialac motor controller mcu dc dc manufacturerfor industry equipment-4

Auxiliary Drive


Technical Parameter


V6-H-4D5.5G & V6-H-4D5.5G  Four-in-one Auxiliary Controller (Oil pump + Air pump +DC/DC+ Power distribution)

Adaptable motor type

Permanent magnet synchronous motor、Three phase asynchronous motor

Applicable vehicle type

Medium Bus、Large Bus、Logistics Vehicle

Product type

V6-H-4D5.5G & V6-H-4D5.5G

Rated input voltage

DC 540V

Rated power

5.5kW & 5.5kW & 3kW

Input voltage range

DC  350V~750V

Rated output current

13A & 13A , DC  27.5V/110A

Maximum output current

19.5A & 19.5A , DC 130A

Output frequency range

0~300Hz

Protection level

IP67

Cooling type

Water cooling

Outline dimension

609*473*188(mm)

Weight

35kg



V6-H-4D5.5G  Air cooling Auxiliary Motor Controller

Adaptable motor type

Permanent magnet synchronous motor、Three phase asynchronous motor

Applicable vehicle type

Medium Bus、Large Bus、Logistics Vehicle

Product type

V6-H-4D5.5G

Rated input voltage

DC 540V

Rated power

5.5kW

Input voltage range

DC  250V~750V

Rated output current

13A

Maximum output current

19.5A

Output frequency range

0~300Hz

Control accuracy

1:100

Protection level

IP67

Cooling type

Air cooling

Outline dimension

268*168*150(mm)

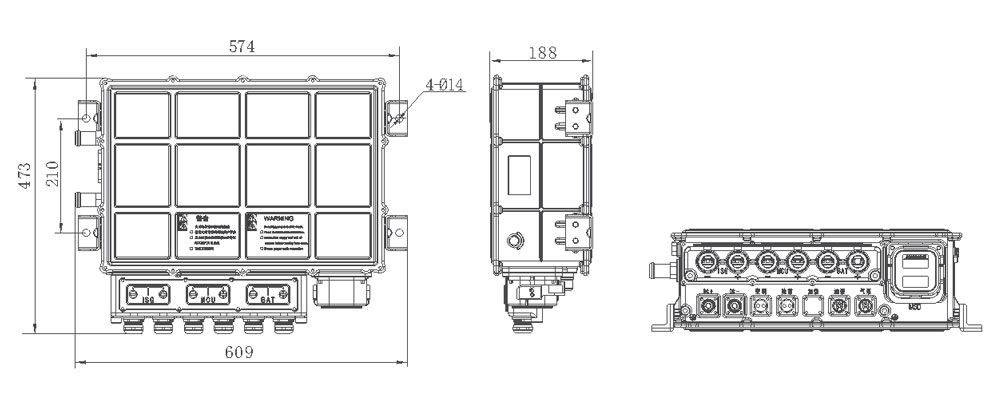

Outline Dimension


specialac motor controller mcu dc dc manufacturerfor industry equipment-5

V6-H-4D5.5G & V6-H-4D5.5G  Four-in-one Auxiliary Controller (Oil pump + Air pump +DC/DC+PDU)


specialac motor controller mcu dc dc manufacturerfor industry equipment-6

V6-H-4D5.5G   Air-cooling Motor Controller



Company Features
1. Shenzhen V&T Technologies Co.Ltd. is a pioneer in ac motor controller research and development. This company has established a strong client base. By gaining deep insight into buyers' purchasing tendency, we have upgraded our products to better cater to clients. This helps us grow stronger to win more customers.
2. With years of development, we have received official recognition of our sound management practices. We have been awarded the title of "China Quality Award" for many years.
3. We are backed by our professional R&D team. Equipped with years of expertise in the industry, they are able to quickly develop new products according to the newest market trend. We sincerely embed sustainability throughout our businesses. To continue this endeavor, we are being equipped with high-end technology to deal with production waste.
